Reading NW-2 #102 – The Cutting Starts

One walkway still to cut

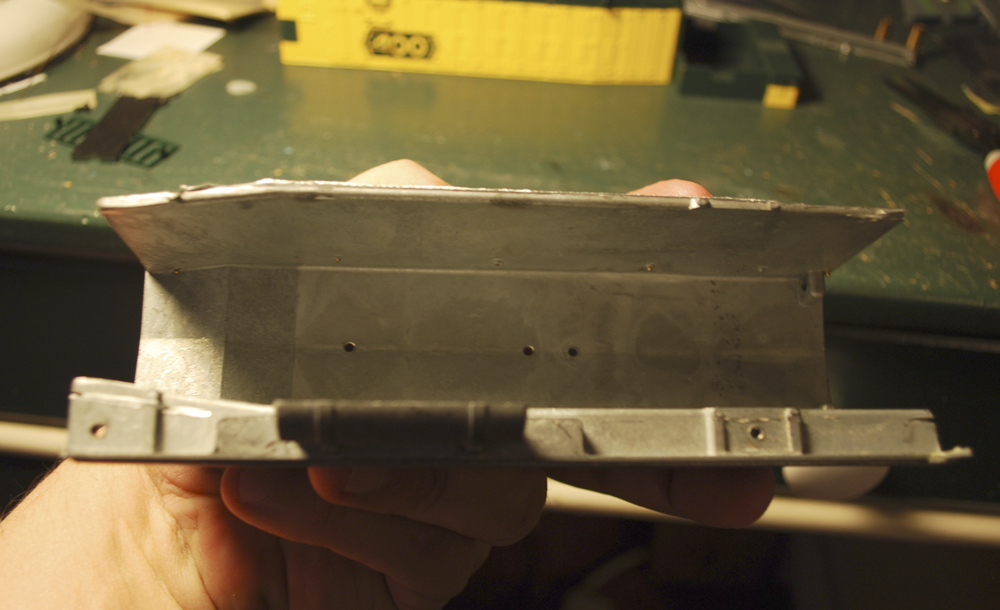

One walkway still to cut - Bottom View of the All-Nation Shell

I started by cutting the ends platforms off the shell. Since the cab was not going to stay it was also cut off the body through the doors.

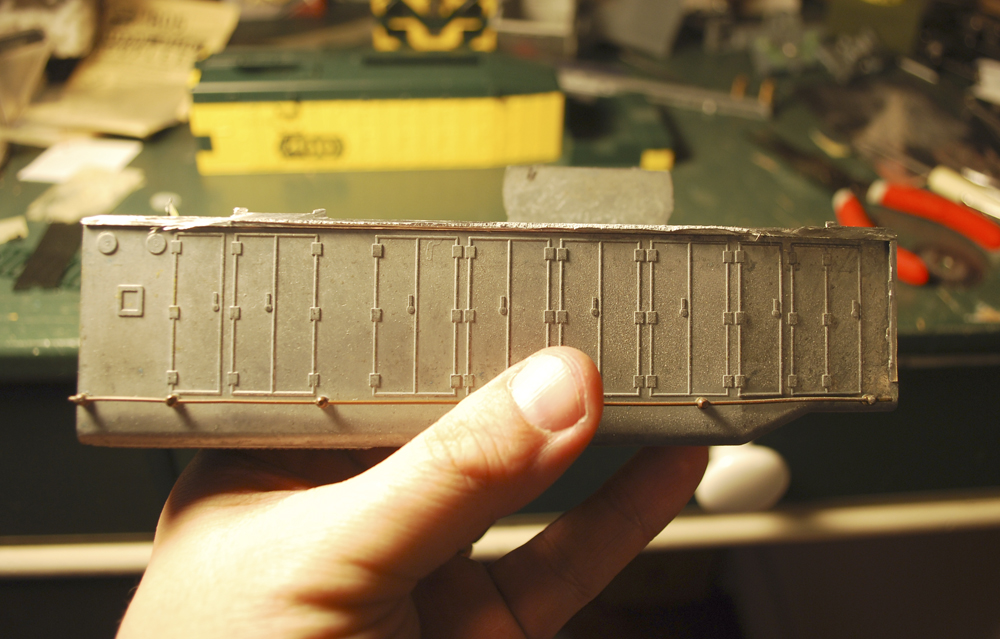

The Cab, and walkways have been removed.

The Cab, and walkways have been removed.

This photo is from the same time as the last. You can see the opposite fuel tank still below the walkway. Also you can see where I rough cut through the walkway floor and the cab walls. The finish cuts will be just inside those walls.

Here is the Mock-up with half of the engineer's side finish cut made.

Here is the Mock-up with half of the engineer

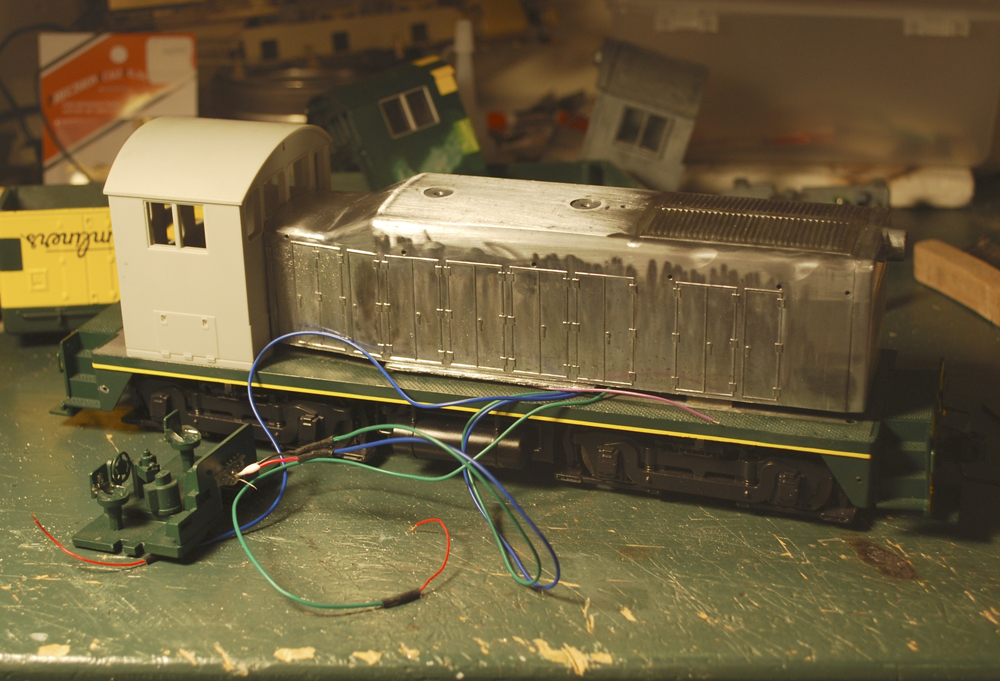

I stopped an put the cab and shell on the Atlas frame. I was checking to see if I needed to shorten the fram at the cab wall area. It did need that cut also. You can see that about half of the rough-cut material has been removed from this side.

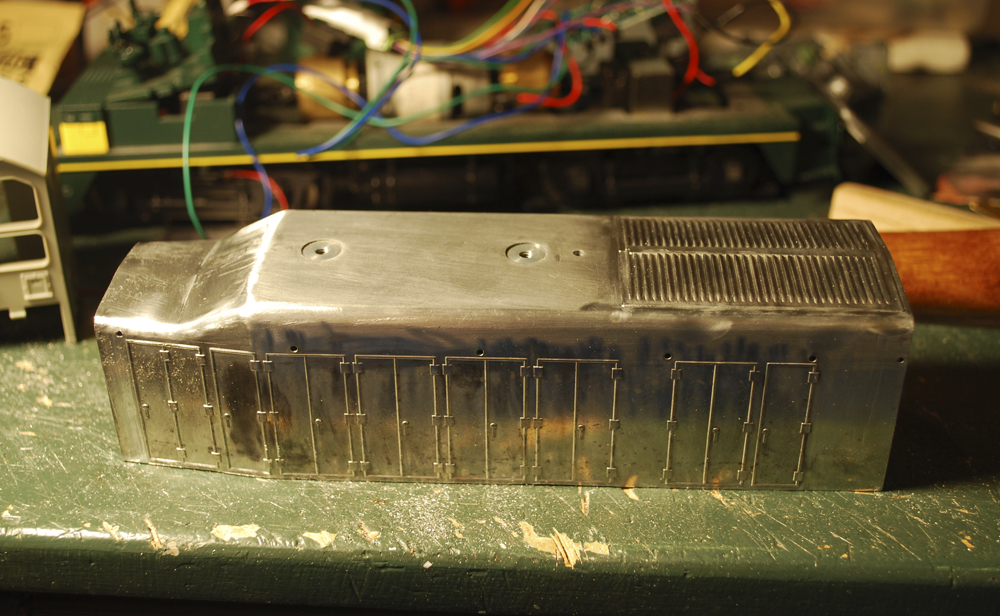

NW2 hood with two of the three finish cut made.

NW2 hood with two of the three finish cut made.

This view shows the finish cut on the engineer’s side and along the cab wall. I still have to make the Fireman’s side cut. This view also show the roof line clean up that has been done so far.
